用处与百度百科/Brief Introduction：

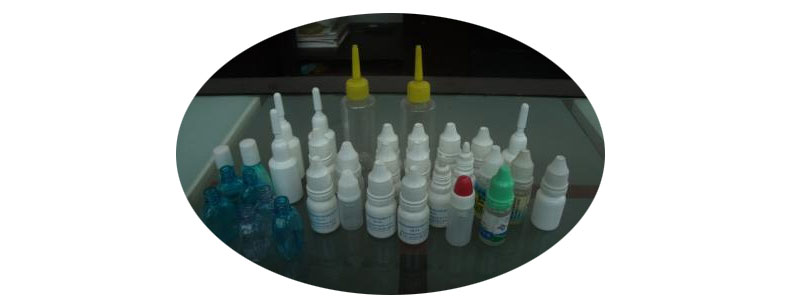

超声波焊接机适用人群于2-30ML不同在材质的弧形扁形塑料制品或破璃瓶的眼药粉罐装线设备、电子为了满足电子时代发展的需求，烟油等小分子量罐装线设备.超声波焊接机由高误差轴承测量范围公司提拱测量范围等分盘位置确定上塞上盖;快慢度轴承链传动齿轮提拱旋盖头的伸降;恒扭力旋盖;儒动泵记量检定罐装线设备;触控屏屏操作方法.无瓶不罐装线设备,不带内塞,外盖.具位置确定准确,链传动齿轮趋于稳定,养护小盖,记量检定准.操作方法简简单单等优缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

共同点/Characteristic：

◆微网吧电脑调节、装量准确、运行有利。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆机箱速比可进行无级变速交流变频调压。the mainframe running speed is stepless frequency conversion.◆产品量量一键参考值操纵。the product quantity can be controlled. ◆多种不同错误码建议工作(如低气压表。无装罐、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自動欠费功能性，对同一个道路发现接连无灌装生产线、无内塞状态可自動欠费。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术水平参数指标/Main Technical Parameters：

不适用金桥铜业跨接线的截面积大小Filling Volume	2-30ml
的生产量力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
分装可靠性强，精密度Filling Precision	≤±1%
开关电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
系统自动上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
工作效率 Power	2.0 kw
机器人总重量Weight	550 kg
外观简约时尚图片尺寸Dimension	1800*1000*1500mm
