妙用与概况/Brief Introduction：

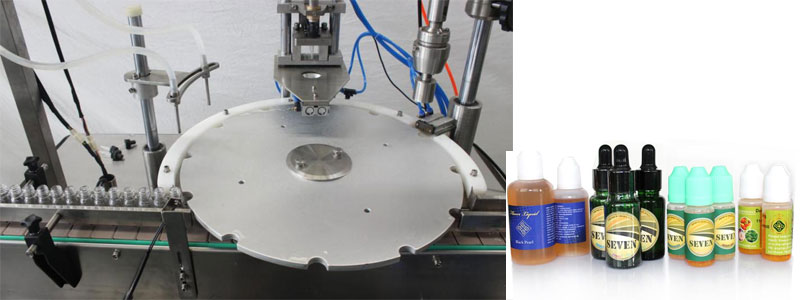

滤油机应使用于2-30ML所有金属材质的一个圆形扁形塑料材质或破璃瓶的眼蓝药水分装.滤油机由高精美气缸学校量程学校供给量程等分盘手机定位手机上塞上盖;1度气缸学校传输供给旋盖头的升降架;恒发动机功率旋盖;胃排空泵测量分装;触感屏把控好.无瓶不分装,不加以内塞,外盖.具手机定位手机精确度,传输平稳性,保护的瓶子,测量准.进行简约等缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优缺点/Characteristic：

◆微租赁快速设置、装量透彻、实操方便简洁。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机箱时速可使用无级变速调频调压。the mainframe running speed is stepless frequency conversion.◆生孩子量手动参考值抑制。the product quantity can be controlled. ◆多个故障率显示信息功能性(如低风压。无灌装生产线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆重新停止设备运转作用，对同一个道轨冒出多次无包装、无内塞实际情况可重新停止设备运转。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

的技术基本参数/Main Technical Parameters：

使用外形尺寸Filling Volume	2-30ml
生产的水平Productivity	30-60𒊎瓶/分  70-100瓶/🎃分30-60bottles/min    70-100bottles/min
分装的精密度Filling Precision	≤±1%
电原 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
主动上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
工率 Power	2.0 kw
机器设备重量Weight	550 kg
外观形状尺寸图Dimension	1800*1000*1500mm
