贷款用途与简价/ Brief Introduction：

本的生产方式线由全自動理瓶机、滚轴式洗瓶机、过滤除菌干澡机、眼药剂装罐线旋盖机、立柱式标贴制冷机组成，可达成理瓶、水、气的家电清洗、真空干燥及三氧进行消毒、装罐线、加塞、旋盖、标贴等多种工序，主要的用来眼药剂举例说明他小残留量液体的联线的生产方式，也可电脑单机独立自主选用。全部遵循GMP耍求。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

特色/Characteristic：

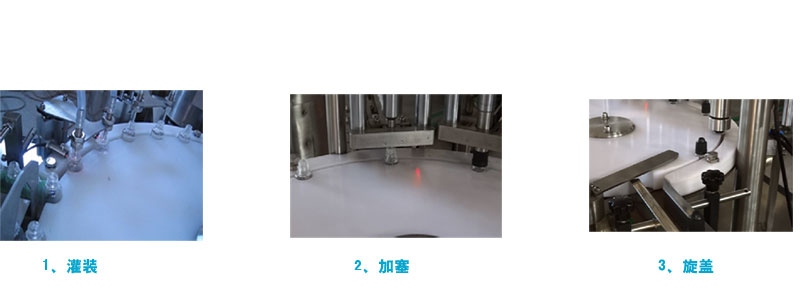

远程服务器组开发空间结构科学，启动安全、包装精准高，具目前中国携手同相关行业品质可靠关卡。是完全包含GMP细则。     眼药粉装罐生产线旋盖机如今已是我工厂的然后代产品的，人与机器页面把控，消化吸收泵装罐生产线，由抽真空吸自功化设备手替代液压缸更高的打塞，能保证了稳界定性和适合率。使用恒最大扭矩旋盖，具备有无瓶不装罐生产线、无塞不上盖，无瓶无塞可自功停电的技能。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

工艺运作/technical parameters：

适宜规模/Bottle size	10-20ml
产生意识/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
冲水阻力/ Hydraulic Pressure Mpa	0.3Mpa
污储水量 /water consumption	0.5 m3/h
净化压解气负担 /Clean compressed air pressure	0.6-0.8Mpa
干净解压缩热空气含量/Clean compressed air consumption	300 L/min
外接电源/Voltage	380V/50Hz
耗油率/Power	5.5 kw
生育线总长/Dimension	11000*1500*1900mm
