借款用途与间介：/Purpose and introduction

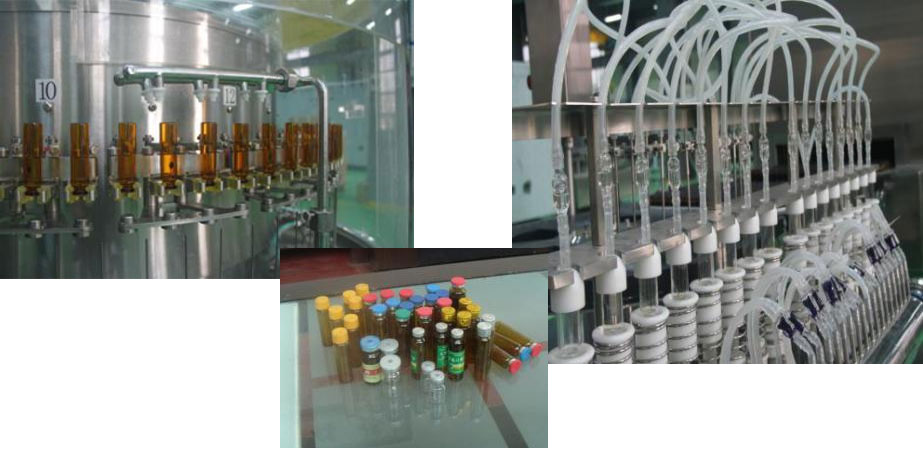

服食液洗烘灌轧一体化线由落地式mri波洗瓶机、桥隧式制热 循环系统杀菌恒温干燥箱、服食液装罐轧盖机等包含，是和于 5-30ml 等不一样的规 格服食液瓶的生产方式的。可完工对制剂生产方式的中安瓿瓶淋水、mri波除垢、冲水、充 气、烘干设备杀菌、冷确、装罐、轧盖等施工工艺步的一体化运营。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

结构特征:/characteristic

◆洗瓶机利用机手夹瓶，用于很多型号的塑料瓶子；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶主要采用雾水喷针往复式监测放进去的方式，洁净治疗效果显著，省生物质能源。并还拥有针架防晃动设备，提升 喷针放进去塑料瓶子的更准度，减低断针这种现象發生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整一个热气线路、喷针完整自立分开用，逃避了重叠严重污染，适合GMP原则符合要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前装个缓冲器块，有保障丝杠，缩减碎瓶目的Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶主要包括产品 进品此次带，联系拨块输送机服用液，运动安全稳定正规In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱使用红外线烧水管，装饰管烧水管双重烧水室温透亮性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装灌轧盖机可选择配淘瓷泵、不銹钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆分装无瓶止灌，无瓶不轧盖工作。Pieces filling without bottle filling, no bottle no rolling function.◆整线利用PLC总调整、直流软启动、手触屏调整技能，执行比较稳定可信。手触屏可显现各单机游戏的执行状况，各调整点的出水量、气压表、压力、温差等显现，各电开关状况和报警显现，报警自主的诊断和报警讲解及是排除办法。使一小部分生孩子进程以达到智能化调整，联线具有着三机自动化控制稳定设施，提高生孩子平衡可信。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.通过的客户的应该，还可供选用：According to the needs of customers, but also available for selection:◆欧姆龙、斯耐德、三凌、台达等品牌标志管控系统性；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压为、水的温度及高周波波硬度、尘埃什么意思粒子束、风量同屏在线测试、報警、信息、印刷软件。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌底部隔离器软件系统。Mixer ORABS, CRABS, aseptic isolator system.

枝术产品参数：technical parameters

适于规格参数Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装灌精确度Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖及格率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
