领域与介绍：Purpose and introduction

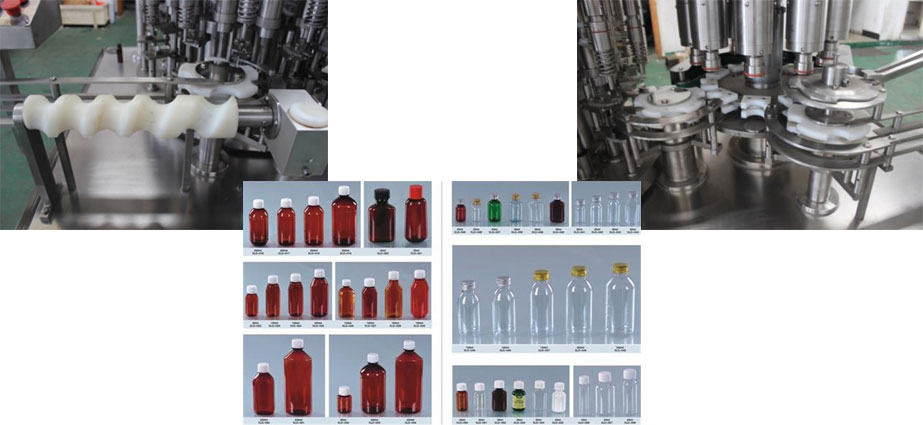

机器适用来对30-500ML一系列玻璃纸瓶、pp可乐瓶的装灌塑封。适用交往交往式活塞件开展装灌，电滋自由振荡送盖，能能轧盖(黑色金属式)或旋盖(pp塑胶片盖)塑封，能能和左右的工作工艺程序的设备相联组合而成工作线，不但能能挑选那些百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

优势特点：characteristic

装量合理，杜尽漏滴。缺瓶不灌装生产线。 交流变频变速。 拒绝表示计数器副作用。 空机均按GMP让设计的概念。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

科技性能/technical parameters：

型号 model	NQGX30-500
不适用規格Cutting dimension	30-500ml
出厂特性Production capacity	80-200瓶/分（罐/分钟的时间）80-200 bottles/min (cans/min)
罐装可靠性强，精密度 Filling accuracy	≤±1%
交流电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
自动化机械净重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
